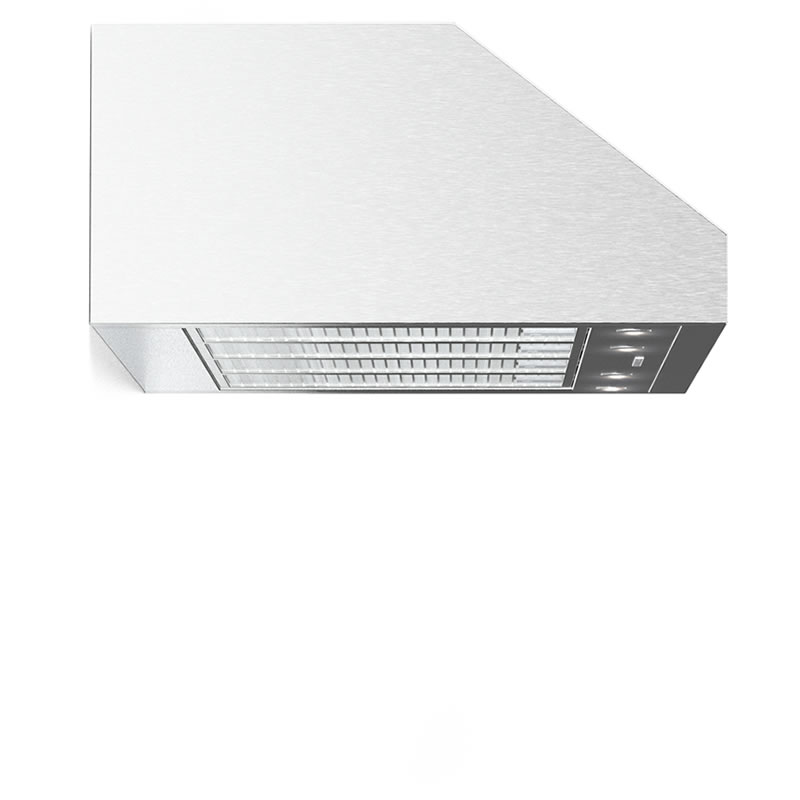

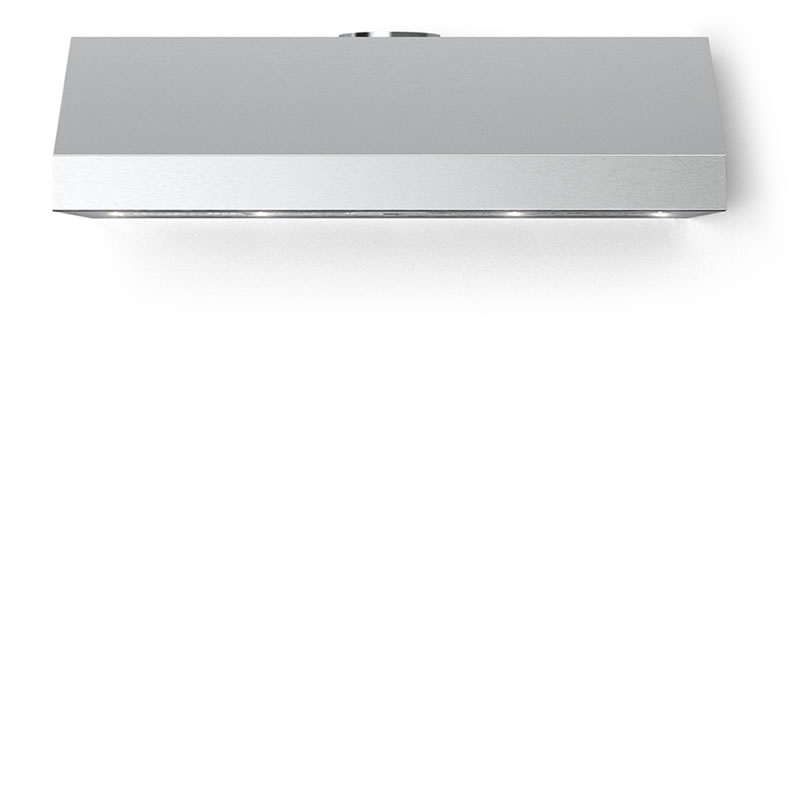

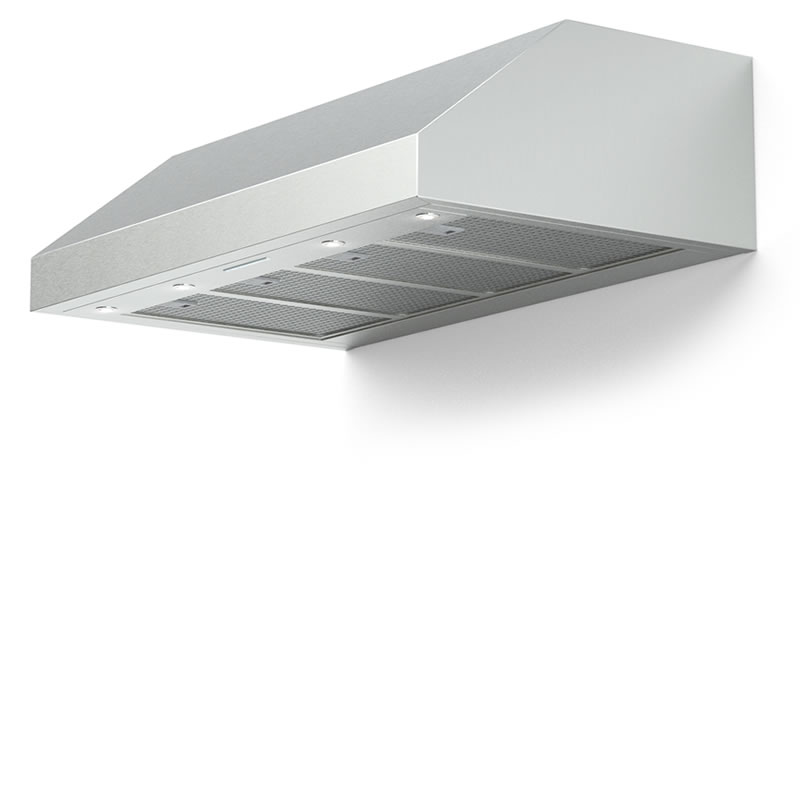

Verona’s 48" Designer Series low profile range hood features 4 fan speeds, time delay shut-off, stainless steel baffle filters, and 4 LED lights.
This Verona hood installs under an upper cabinet and is designed with a low profile 10-inch height for a sleek and functional installation.
A stainless steel 5 button back-lit keypad allows for easy adjustment of the fan speed, operation of the LED work lights and auto shut-off timer.
Additional features include:
- Stainless steel, anti-grease baffle filters that are dishwasher-safe.
- 1200-CFM motor for powerful ventilation of grease, smoke and odors from the kitchen.
- Light indicator for grease filter maintenance.
For external ventilation, a 7 7/8" inch round duct is required.
For interior venting installation, an optional filtration kit is required.
Features
Model number
VELP4810GSS
- 1,200 CFM
- 4 Fan Speeds
- Delayed Power Shut Off

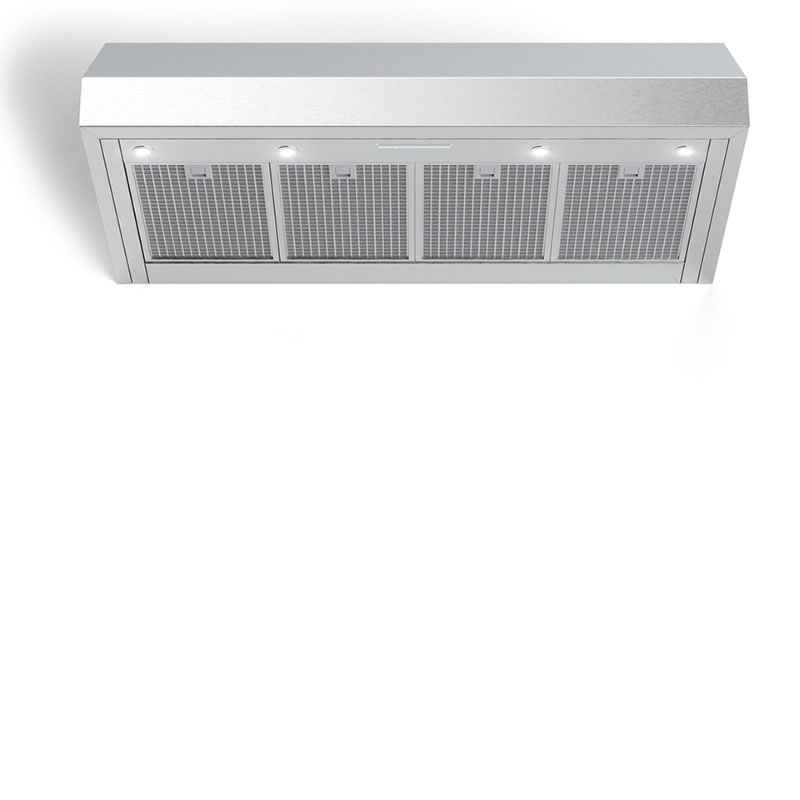

- 4 LED Lights
- 3 Stainless Baffle Filters
- All Stainless Steel
- Welded Seamless Edges
- Light Indicator for Grease Filter Maintenance
- Light Indicator for Charcoal Filter Replacement
Specifications
- Duct size: 7-7/8” (200 mm)
- Width: 47-29/32" | Height: 10" | Depth: 21"
- 120V 60 Hz 15 AMP
- 55 lbs.
Manuals/Downloads
Installation Manual
Attachment | Size |
---|---|
395578_instructions_low_profile_ec_en_1.pdf | 632.99 KB |
Spec sheet
Attachment | Size |
---|---|
velp4810gss_spec_sheet.pdf | 265.08 KB |
Accessories
Ductless Conversion Kit allows the range hood to re-circulate air when outdoor venting is not available.
